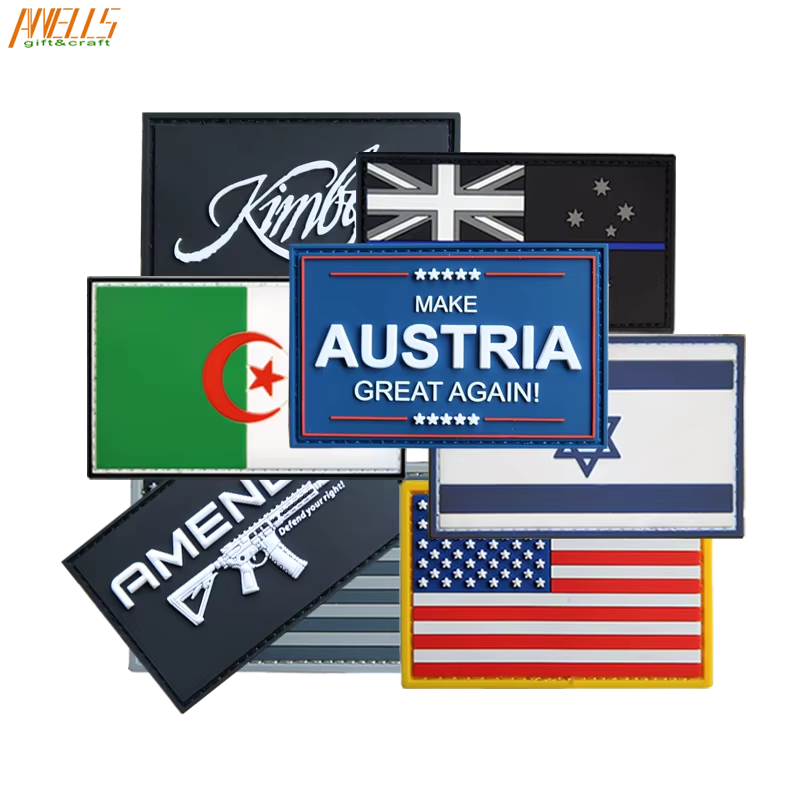

Standard PVC Badge Sizes and Industry-Specific Benchmarks
Selecting the correct dimensions for a PVC badge begins with understanding how placement influences visual hierarchy, fabric stress, and wearer comfort. For chest-mounted badges, the standard range is 3–4 inches wide by 2–3 inches tall—large enough to display names, titles, or logos without overwhelming the garment’s breast pocket area. Sleeve badges are typically narrower (2–3 inches by 1–2 inches) to align with the arm’s natural taper and avoid restricting movement. Collar applications, often used for rank insignia, rarely exceed 1.5 inches in any direction, ensuring they sit flush against the collar without flopping. Back badges (common on tactical or security vests) can be larger, often ranging 4–6 inches in width, to maximize legibility from a distance.
Common PVC badge dimensions by placement: chest, sleeve, collar, and back
The table below summarizes the typical size ranges for each uniform placement, along with key design considerations.
| Placement | Typical Width (in) | Typical Height (in) | Design Considerations |
|---|---|---|---|
| Chest | 3.0 – 4.0 | 2.0 – 3.0 | Must fit below collarbone and above pocket seam; avoid excessive thickness that creates bulk. |
| Sleeve | 2.0 – 3.0 | 1.0 – 2.0 | Should not extend beyond sleeve width; rounded corners reduce snagging. |
| Collar | 1.0 – 1.5 | 0.5 – 1.0 | Thin profile to prevent curling; often rectangular or oval. |
| Back | 4.0 – 6.0 | 3.0 – 5.0 | Use larger text and higher contrast for distance readability; heavy-duty adhesive or stitching recommended. |
Sector-specific standards: military, law enforcement, healthcare, and corporate uniform protocols
Each industry has evolved distinct size norms that balance functionality with regulatory requirements. In military uniforms, name tapes and unit patches follow strict guidelines: name tapes are usually 1 inch tall by 4 inches wide, while subdued combat patches stay within 3–4 inches in diameter. Law enforcement agencies typically require chest badges measuring 2.5–3.5 inches tall, with agency logos centered and officer ID numbers legible from 10 feet. Healthcare settings prioritize hygiene and quick identification; ID badges on scrubs are commonly 2×3 inches, printed on matte PVC to reduce glare. Corporate uniforms, while less regulated, often adopt a badge size of 2.5×2.5 inches for a modern, discreet look that fits on polo shirts or blazers. Adhering to these sector benchmarks ensures the PVC badge meets both compliance standards and day-to-day performance expectations.
Garment-Centric PVC Badge Sizing Guidelines
Chest placement: balancing visibility, proportion, and fabric integrity
For chest placement, the PVC badge should sit 7 to 9 inches below the shoulder–collar junction, centered on the left side. This standard distance ensures high visibility without interfering with pocket lines or placket openings. Proportion matters: a badge that is too large overwhelms the garment, while one too small becomes illegible. For men’s and women’s polos, a badge height of 2 to 5 inches works well; for children’s garments, reduce the range to 2–3 inches. Fabric integrity is also critical. Heavy PVC badges on lightweight shirts can cause sagging or adhesive fatigue over time. To avoid distortion, choose a badge thickness and backing (heat seal or Velcro) that match the fabric weight. Always test the placement on a sample garment before production to ensure the badge lies flat and does not stretch the material.
Sleeve and collar applications: ergonomic fit, movement tolerance, and seam alignment
On sleeves, locate the badge 2 to 3 inches above the hem on the upper arm (left sleeve for law enforcement, right for military dress). This zone provides enough clearance for elbow bends without the badge catching. Keep the badge height under 3 inches to avoid interfering with arm movement. For collars, place the badge centered on the left side of the collar stand, approximately 1 to 2 inches from the neck seam. The badge should not extend past the collar edge to prevent chafing. Align the badge parallel to the seam—a misaligned badge creates tension lines and looks unprofessional. For both placements, allow a 1/16‑inch buffer between the badge border and the nearest seam to prevent thread stress. Use lightweight PVC (≤2 mm thick) for sleeves and collars to maintain flexibility.
Functional and Compliance Risks of Incorrect PVC Badge Size
Selecting the wrong dimensions for a PVC badge can trigger a cascade of operational and compliance failures. When a badge is too small, critical identifiers such as name, title, or department codes become illegible—undermining on-site security protocols and professional identification requirements. Conversely, an oversized badge creates mechanical stress points on the uniform fabric, leading to premature garment distortion and adhesive breakdown over repeated wear cycles. These sizing errors scale into systemic problems for organizations managing large fleets, as misprinted or misaligned badges must be reordered, increasing procurement costs and logistical complexity without enhancing visibility. Ensuring dimensional accuracy in the initial design phase mitigates legibility loss, preserves fabric integrity, and maintains compliance with industry uniform standards.
A Practical Framework to Select the Right PVC Badge Size
Selecting the correct PVC badge size requires a structured approach that balances visibility, garment compatibility, and operational requirements. Begin by identifying the primary badge placement: chest applications typically need larger dimensions (e.g., 3–4.5 inches) to maintain legibility from a standard viewing distance, while sleeve, collar, or small identification badges shrink to 1–2.5 inches for a more discrete profile. Next, align the size with your industry and use case—security and public-safety uniforms often demand badges readable across a room, making them wider and taller, whereas corporate environments favor moderate dimensions that integrate smoothly with tailored fabrics. Evaluate the uniform material’s weight and stretch: lightweight polyester or cotton shirts may distort under an oversized badge, causing adhesive failure or unsightly puckering after repeated wear. Confirm that all design elements—text, logos, or serial numbers—meet minimum thickness and spacing guidelines to avoid breakdown at scale. By applying this stepwise framework, organizations can consistently select a PVC badge size that reinforces professional identity without compromising uniform integrity.
FAQ
What are the standard PVC badge sizes for different placements?
Standard sizes vary by placement: chest badges are 3–4 inches wide by 2–3 inches tall, sleeve badges are 2–3 inches wide by 1–2 inches tall, collar badges are ≤1.5 inches, and back badges are 4–6 inches wide by 3–5 inches tall.
How do industries like law enforcement and healthcare determine badge sizes?
Law enforcement badges are typically 2.5–3.5 inches tall, while healthcare badges on scrubs are often 2×3 inches. Both industries prioritize legibility, hygiene, and regulatory compliance.
What factors influence the proper size for a PVC badge?
Key factors include placement (chest, sleeve, collar, or back), industry standards, fabric type, and usage requirements like visibility and movement tolerance.
Why is fabric compatibility important for PVC badges?
Fabric compatibility affects badge adhesion, garment distortion, and wearability. Heavy badges on lightweight fabrics can cause sagging or puckering.
What happens if the PVC badge size is incorrect?
Incorrect sizes can result in legibility issues, fabric damage, and compliance violations, leading to higher costs and operational inefficiencies.
