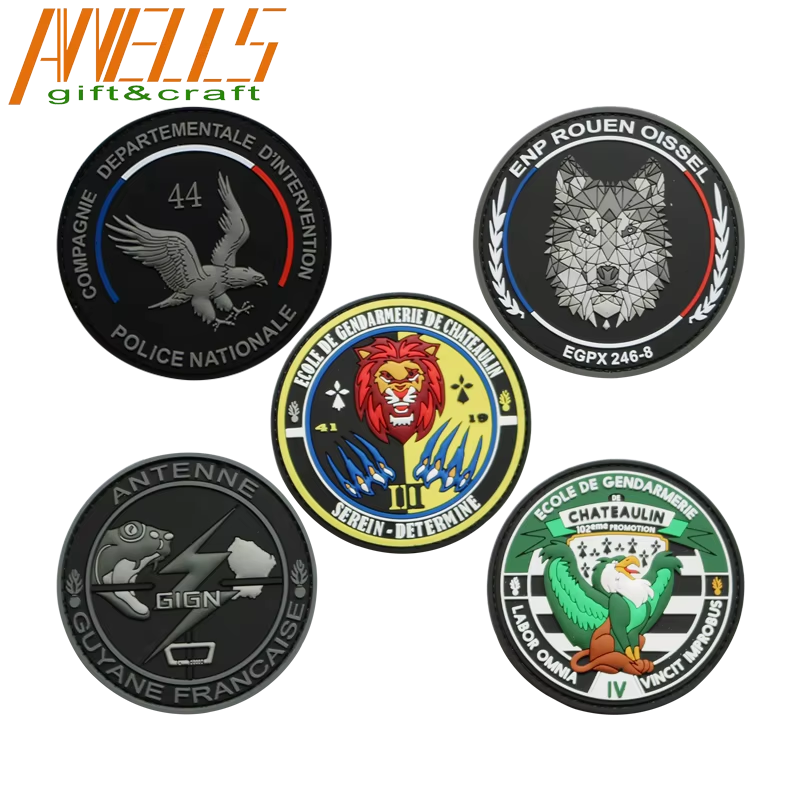

How to Ensure the Flexibility of Custom PVC Patches?

Material Selection: Plasticizers, Vinyl Base, and Flexibility Performance

How Plasticizer Type and Loading Affect Bendability and Long-Term Elasticity in Custom PVC Patches

The flexibility of a custom PVC patch is governed primarily by the type and amount of plasticizer blended into the vinyl base. Plasticizers embed between polymer chains, reducing intermolecular forces and lowering the glass transition temperature—thereby increasing chain mobility and enabling bendability without cracking. Not all plasticizers perform equally: dioctyl sebacate (DOS), for example, delivers superior cold-temperature flexibility and long-term elasticity, making it ideal for patches used on winter apparel or outdoor gear. In contrast, general-purpose phthalates may stiffen or embrittle below 0°C. Plasticizer loading is equally decisive—too little yields rigidity and poor conformity; too much invites surface migration, resulting in tackiness or greasiness over time. Optimal formulation aligns plasticizer chemistry and dosage with the patch’s thermal and mechanical service environment, ensuring stable flexibility across years of wear and laundering.

Balancing Elongation at Break with Tensile Strength and Low-Temperature Resilience

Durability in flexible PVC patches hinges on balancing three interdependent properties: elongation at break, tensile strength, and low-temperature resilience. While high elongation (200–350%) supports repeated bending, it often comes at the expense of tensile strength—rigid PVC achieves 40–60 MPa, whereas flexible formulations typically range from 10–25 MPa. For most garment applications, a target of ≥10 MPa tensile strength paired with 200–350% elongation provides reliable tear resistance without sacrificing pliability. Low-temperature resilience further refines this balance: sebacates and adipates maintain chain mobility in sub-zero conditions but may yield slightly lower tensile values than conventional alternatives. The trade-offs are summarized below.

Application context drives selection—patches for arctic outerwear prioritize cold-tolerant systems; those on high-stress seams (e.g., backpack straps) may favor higher tensile strength over extreme elongation.

Design Optimization for Flexible Custom PVC Patches

To ensure seamless conformity to curved garment surfaces—such as shoulders, sleeves, or cap fronts—designers must integrate material science with geometric intelligence. Two foundational strategies are thickness grading and edge finishing. Thickness grading tapers the patch from a thicker central zone to a thinner perimeter, reducing bulk at the margin and preventing buckling during flex. Rounded edge finishing—achieved via mold chamfering or precision trimming—eliminates sharp corners that lift or snag fabric. Together, these techniques maximize drape and comfort while preserving structural integrity.

Thickness Grading and Rounded Edge Finishing to Maximize Conformity on Curved Surfaces

Effective thickness grading typically transitions from 2.0 mm at the patch’s core to 0.8 mm at the outer edge. This gradient distributes bending stress more evenly, minimizing crack initiation at fold lines during repeated motion. When paired with a 0.5 mm edge radius, the patch conforms tightly to compound curves like sleeve caps or baseball crowns—reducing air gaps and eliminating lift under tension. Some manufacturers add a subtle undercut along the perimeter to enhance fabric adhesion, ensuring the patch remains flush even during dynamic movement or fabric stretch.

2D vs. 3D Profiles: Geometry-Driven Flexibility Limits and Wear Comfort Implications

Profile geometry directly governs bending stiffness. Flat 2D patches (0.5–1.0 mm thick) offer maximum flexibility and adapt readily to tight radii—ideal for elbows, pockets, or contoured hems. In contrast, 3D features—raised logos, embossed text, or sculpted elements—add localized thickness (often 2–3 mm or more), increasing rigidity and limiting conformability. While 3D designs boost visual impact, they require strategic placement on flatter garment zones to avoid discomfort from edge stiffness or pressure points. To mitigate this, designers taper raised areas gradually and retain a thin base layer (≤1.0 mm), decoupling aesthetic prominence from tactile compromise.

Precision Manufacturing: Molding, Layering, and Curing for Consistent Pliability

High-Fidelity Mold Engraving and Uniform Liquid PVC Dispensing for Dimensional Stability

Consistent flexibility begins at the mold. Precision engraving ensures cavity geometry matches design intent within ±0.05 mm tolerances—preventing warpage, uneven wall thickness, or residual stress that could trigger premature cracking. During production, servo-controlled dispensing systems meter liquid PVC at calibrated flow rates, delivering uniform fill across all cavities. This eliminates weak zones—such as thin sections prone to splitting or thick zones that resist bending—and guarantees batch-to-batch consistency in both form and function.

Curing Parameters: Controlling Cross-Link Density to Preserve Flexibility Without Sacrificing Durability

Curing transforms liquid PVC into a stable, elastic solid—and its parameters critically define final performance. Temperature, pressure, and dwell time collectively determine cross-link density: excessive cross-linking produces brittleness; insufficient bonding compromises tear strength and shape retention. Manufacturers tune these variables to achieve an optimal network—dense enough to withstand abrasion and repeated flexing, yet open enough to preserve softness and recovery. Real-time thermal profiling across oven zones ensures uniform cure depth, so every patch retains predictable, durable pliability from first use through extended service life.

FAQ Section

What is the role of plasticizers in PVC patches?

Plasticizers are added to PVC to increase flexibility by embedding between polymer chains, reducing rigidity and improving bendability without cracking.

What makes dioctyl sebacate (DOS) a better option for cold environments?

Dioctyl sebacate provides superior cold-temperature flexibility and long-term elasticity, making it ideal for applications requiring resilience in sub-zero settings.

How do edge finishing and thickness grading enhance patch performance?

Edge finishing prevents sharp edges from lifting or snagging, while thickness grading improves conformity to curved surfaces by distributing stress evenly.

Why is curing important in PVC patch production?

Curing solidifies liquid PVC into an elastic form, ensuring the right balance of durability and flexibility for reliable long-term use.

What’s the difference between 2D and 3D PVC patch profiles?

2D profiles are flat and offer high flexibility, while 3D designs add thickness for visual impact but may reduce conformability and require strategic placement.
